Entecon Automatic Sack Opener, Bag splitters or Bales opener are highly safe, enclosed and efficient bag emptying stations for loading mixers and other processing equipment.


Design Features

• PLC and HMI controlled (currently Allen Bradley for customers requirements)
• Dust free and hygienic operation in an enclosed Bale opener
• Maximum sack size 950mm long 620mm wide and 270mm deep
• Minimum sack weight 20kg
• Horizontal operation ensures minimum plastic Bale fragment contamination
• High emptying rate by lifting the opened plastic Bale onto pinch rollers
• The design is contained with two hoppers to allow cleaning of any residue material.
• A dust extraction system can be fitted on top of the unit. The filter automatically cleans and returns the product into the Bale opener
• Manual hatch system for small additions to the product vessel.

Options

• Integrated or separated dust extraction system
• Infeed belt conveyor
• PLC type customer specification
• HMI side customer configerable
• Sack / Bale discharger side customer configerable
• Machine height customer configerable (*up to a limit)

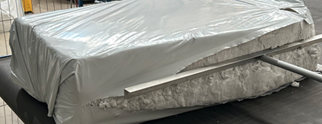

During testing of the machine we trialled a shorter bale with a plane over sack (grey) to prove it works (click on the picture below to take you to the Entecon you tube channel). Testing on site with uncompressed bale (click on the picture below to take you to the Entecon you tube channel). A typical fibre Bale

Visit our You Tube site below (click on the picture below to take you to the Entecon you tube channel).

Our current machine

Our New Machine THE ASO300ML
