FIBC’s are called many things; Bulk Bags, Ton Bags, Tote Bags, and they come in a wide range of sizes, the Entecon FDS can handle them all.

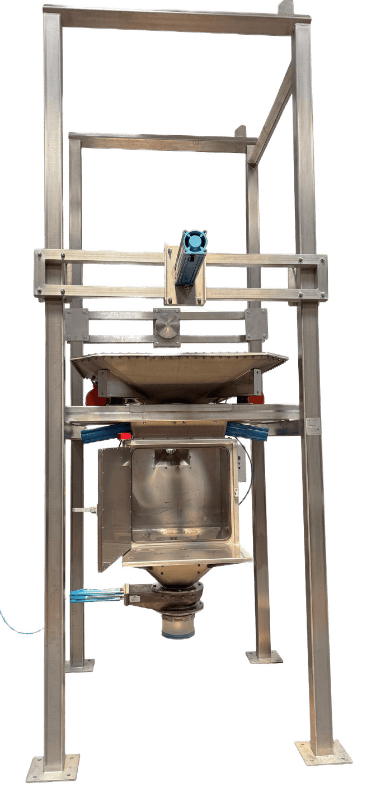

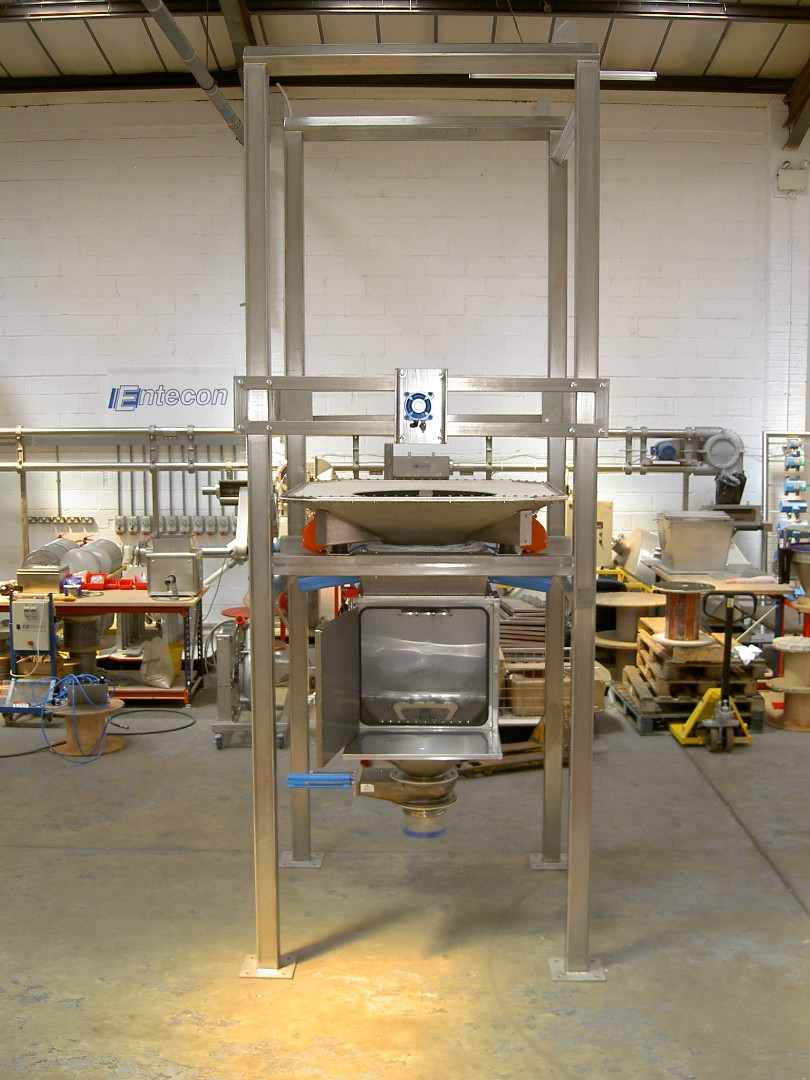

Made entirely of 304 or 316 stainless steel, the FDS is safe and reliable due to the robust construction of the safety frame which is adjustable to accommodate different bag sizes.
ATEX zone 21 (internal) and zone 22 (external) Hazardous Area Classification for explosive powders.

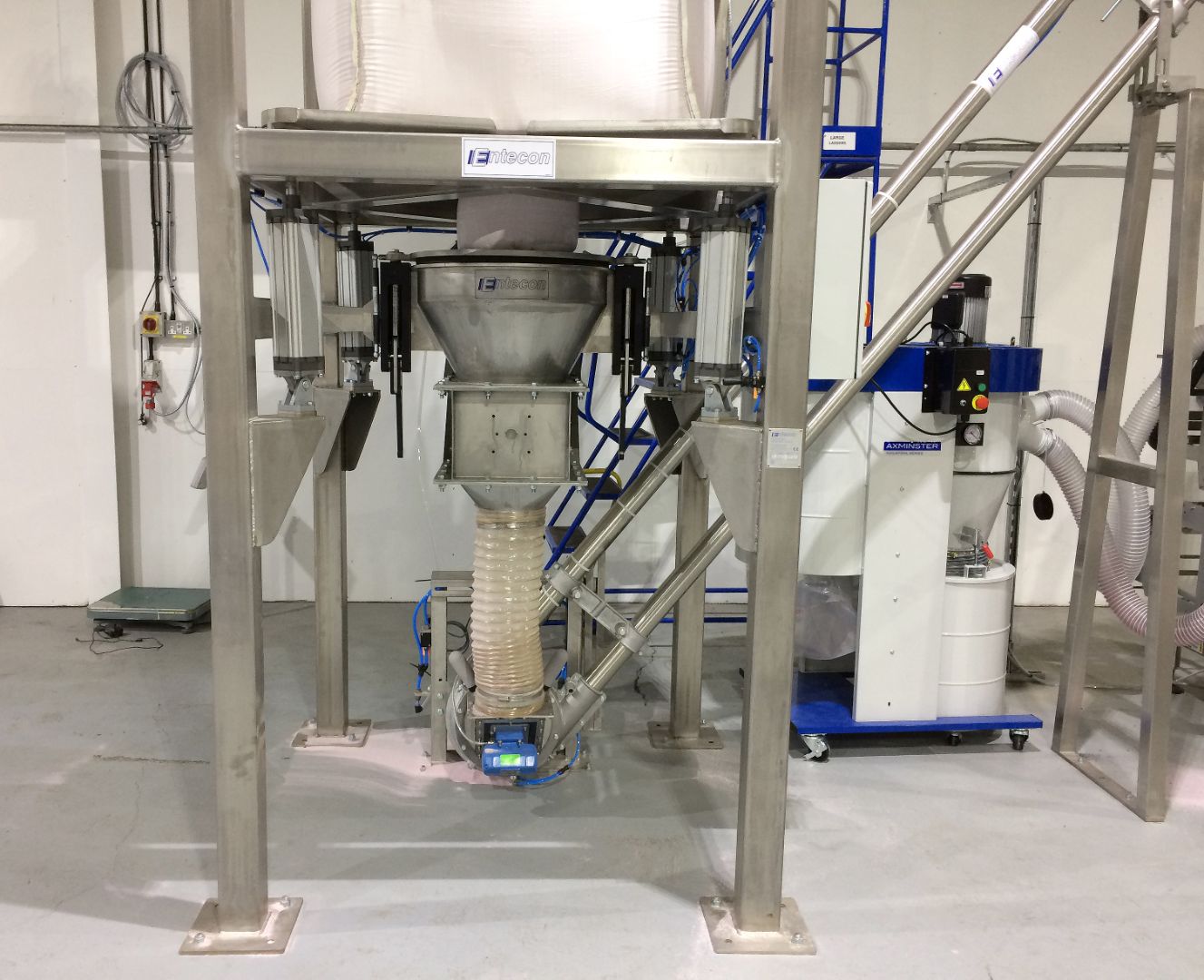

The FDS uses a unique manual bag clamping system that holds the FIBC spout securely, eliminates all nuisance dust release.
Pneumatically actuated paddles, rams and vibrators promote material flow through the FIBC spout, ideal for the most difficult powders.
Whether the downstream conveyor is an Entecon AMC, a pneumatic conveyor or a gravity feed system, the FDS is universally compatible.
The FDS is routinely mounted on load cells to allow accurate batch processing.
Each FDS is bespoke, to match your process requirements.
Simple mechanical design and controls means attractive ROI compared to alternatives.
FDS are widely used across multiple industries, including:
Yes — the FDS uses a unique bag clamp that holds the bag spout securely. The only time that powders can escape is when the spout is removed from the bag clamp. A “Local Extract Ventilation” (LEV) can be used at this point to provide dust containment.
Yes, the FDS can be mounted on load cells, when the required quantity of material has been discharged, the knife valve is actuated and the spout is closed.
Yes, the unit is designed for up to 1,500kg FIBC’s, and it’s provided with a SWL certificate for the lifting frame.
Yes, we can make bespoke machines to fit in your factory.
Yes, we have made portable units in the past, some with nylon ATEX rated skid plates.
Entecon Industries Ltd are leading UK specialist in bulk material and powder handling. Every machine is engineered to order, ensuring optimal performance, safety, and long-term reliability. We believe that our FIBC Discharge Station is the best machine of its type available on the market today.
For more information about our FDS or any of our other products or services, please contact us, +44 (0) 1276 414540 .
