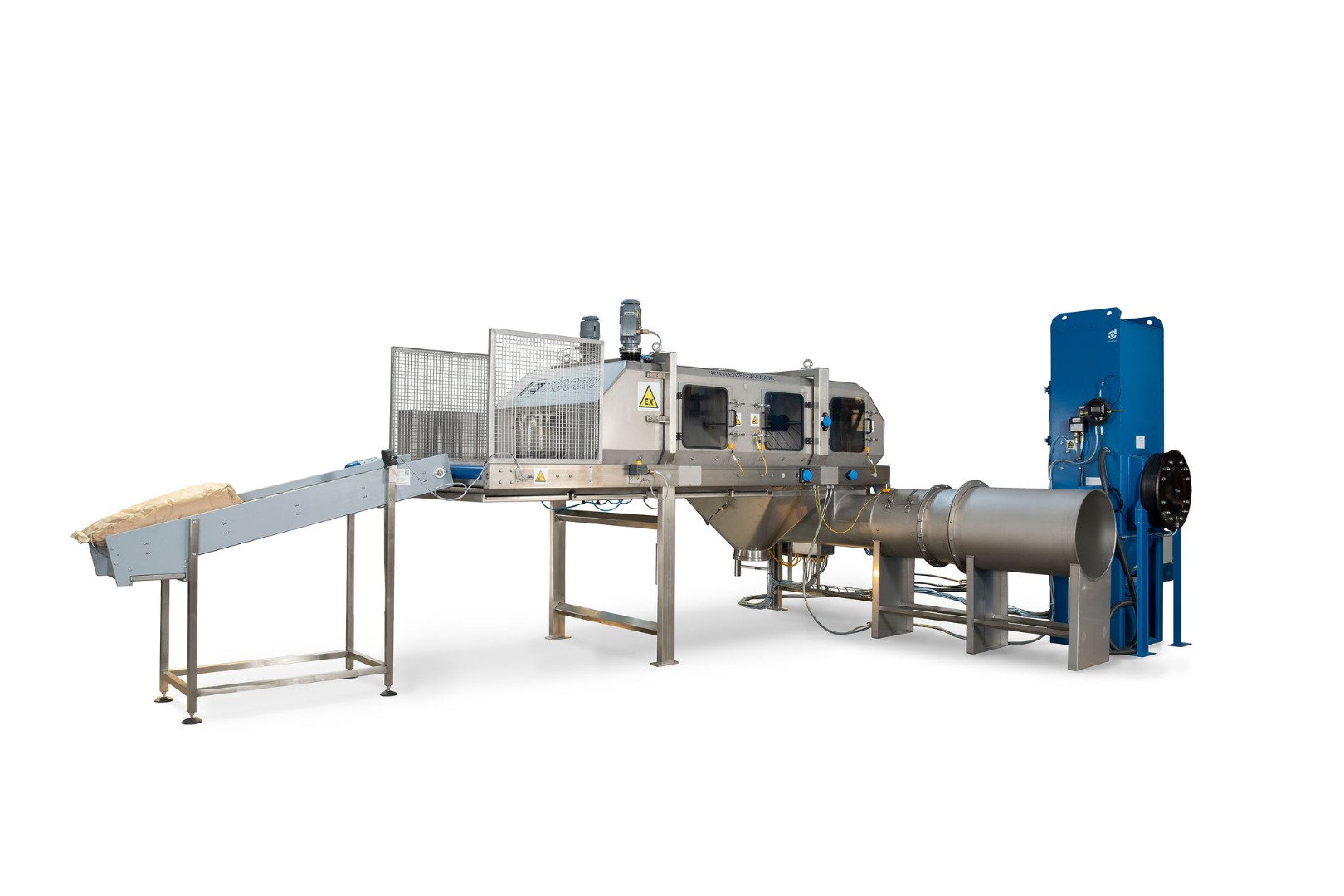

Automatic Sack Openers

Entecon Automatic Sack Openers or bag splitters are highly safe, enclosed and efficient bag emptying stations for loading mixers and other processing equipment by up to 500* sacks per hour.

* dependent on variables such as sack material & size, product etc.

Design Features

  • PLC and HMI controlled
  • Dust free and hygienic operation in enclosed sack opener
  • Maximum sack size 1200mm long, 620mm wide and 250mm deep
  • Minimum sack weight 10kg
  • Horizontal operation ensures minimum paper fragment contamination
  • High emptying rate by lifting the opened bags onto pinch rollers
  • The outlet of the product collection hopper can be provided with vibratory motors to gravity outlet or different type of onwards conveying systems
  • A dust extraction system can be fitted on top of the unit. The filter automatically cleans and returns the product into the bag opener
  • Food grade design


  • Integrated or separated dust extraction system
  • Infeed belt conveyor
  • ATEX or UKEX Certification (depending on the market)
  • Dosing Outlet
  • Manual or automatic powder additive system

Sack cutting

Cutting blades in operation

Raised installation

Confined space installation

For more information about our Automatic Sack Openers or any of our other products or services, get in touch today
