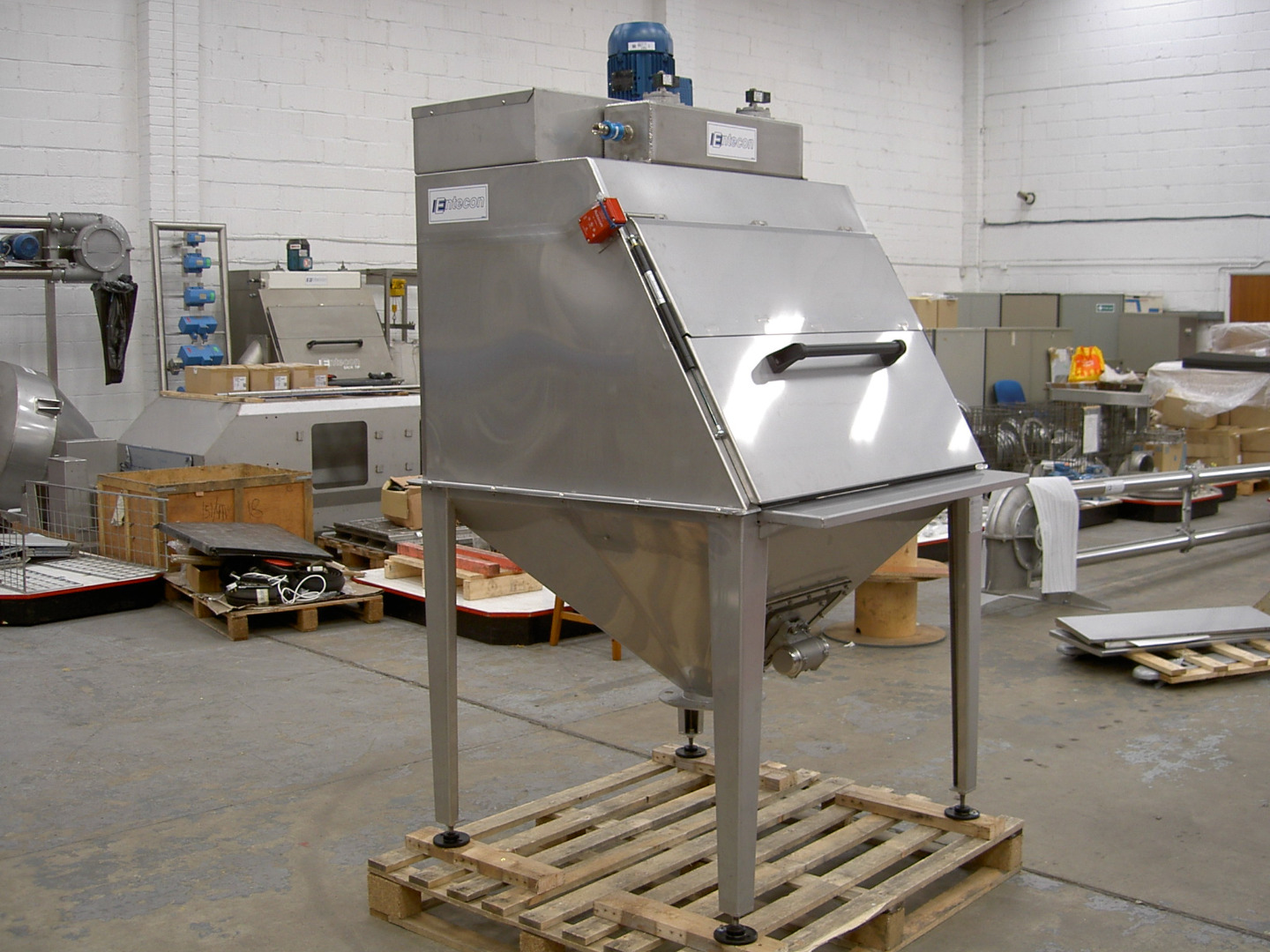

Sack Tip Station
to open 25kg bags of chemicals
OVERVIEW
Throughout the years Entecon has manufactured many Sack Tip Stations or rip and tip manual bag openers for different type of manufacturers. The Sack Tip Station is ideal to open sacks chemical powders.
PROJECT
Entecon has produced this Sack Rip and Tip Station to provide an interim solution before a full capex project can be provided to allow the install one of Entecon’s Automatic Sack Openers.
The operation of the Manual Sack Opener is via the door, as this automatically starts the extraction allowing the operator to load the sacks without needing to start the machine. The empty sack can be deposited in the sack chute provided.
Clean down of the filter is via a reverse jet filter which operates via a timer from the start of the lifted door sequence. This pulse of air provided by the accumulator helps with extending the filter life.
OBJECTIVES
The client and Entecon developed the design criteria which includes:
-
Improving the material handling process and contain dust / clean GMP operation
-
Ensuring compatibility with client’s existing production line
SOLUTION
Based on the client’s criteria Entecon’s Sack Tip Station has the following design and features:
-
Opening 25kg sacks with Alumina Trihydrate, Titanium Doixide, Calcium / Magnesium Carbonate and TALC.
-
Heavy duty safety grid in hopper
-
Sack rest shelf hinged for efficient sacks cutting with minimal dust release
-
Waste sack chute for transfer of used sacks into waste liner
-
Low maintenance design
-
Wurges vibration motor to aid flow with separate controls (start/stop) able to operate independently
|
